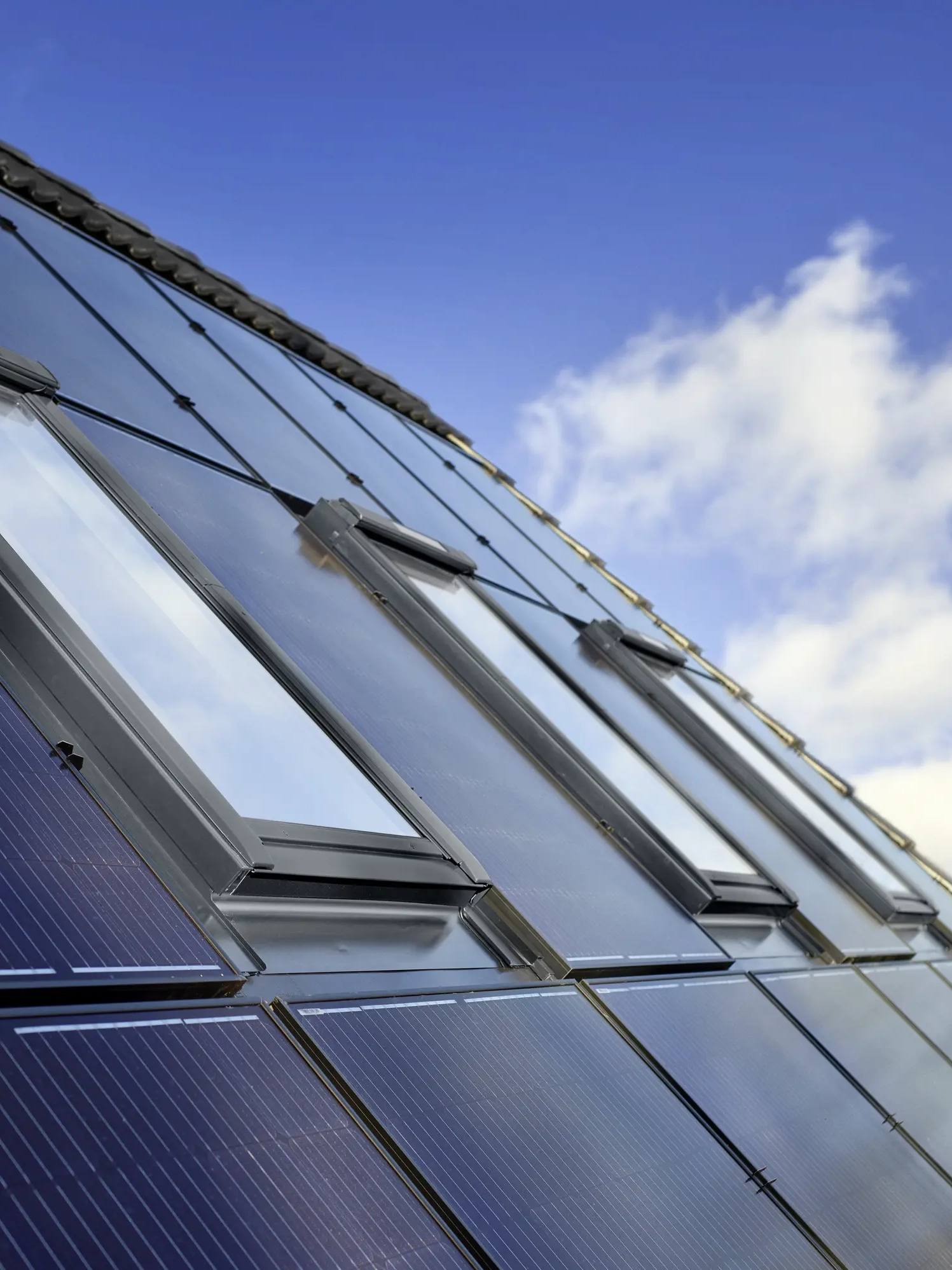

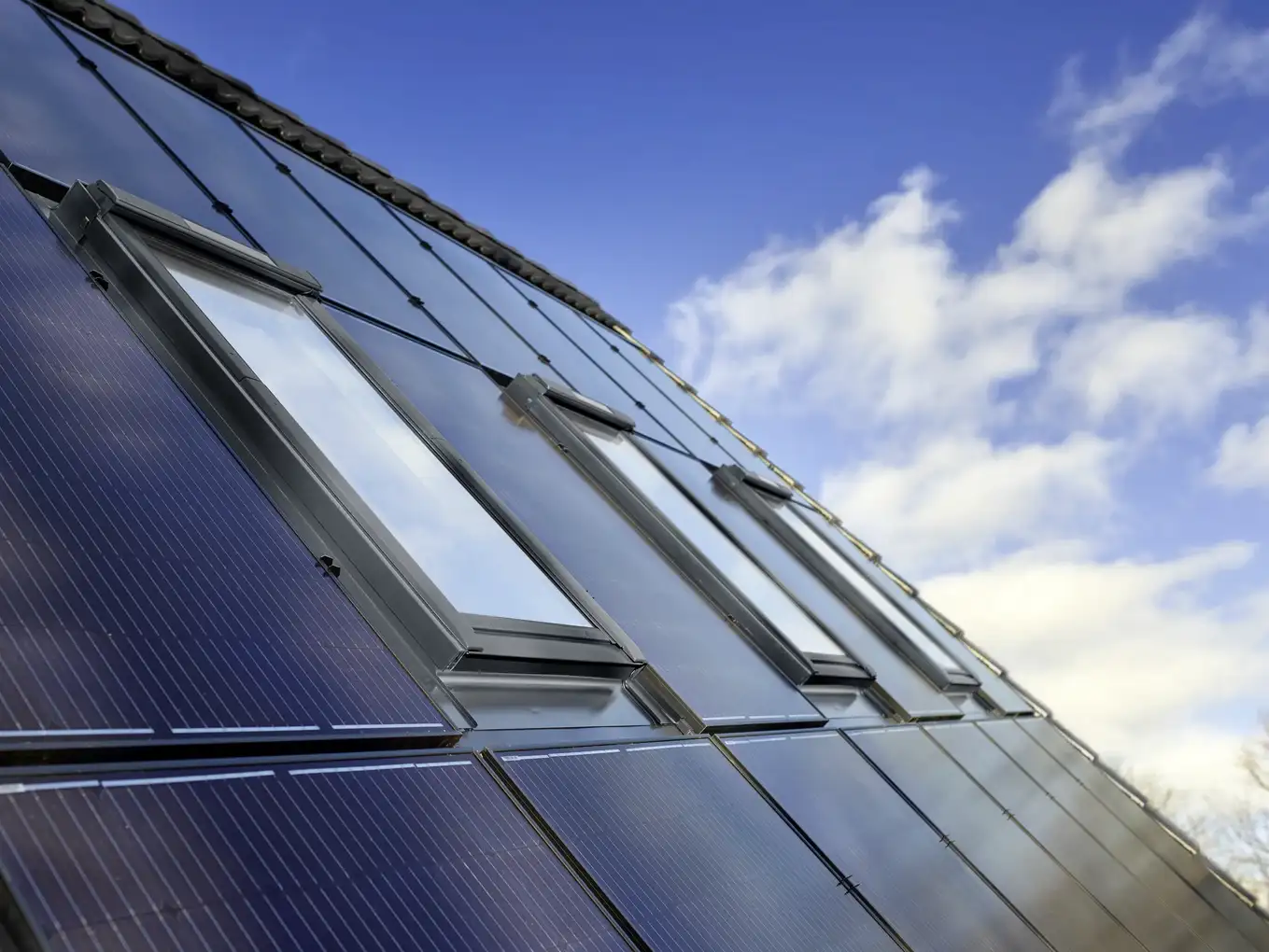

Roof with solar panels and VELUX windows under a clear blue sky.
VELUX roof windows integrated with GSE in-roof system
VELUX Solar Integrator

The VELUX Solar Integrator is a specially designed flashing that perfectly connects VELUX roof windows to a variety of solar panel build-in systems. Our solution ensures that your roof window will fit perfectly into the PV grid because of an easy, fast, safe and seamless integration.

In order to secure perfect positioning of the solar panels and the VELUX roof window, the unique and innovative side section design allows for up-to 25 mm sideways flexibility. That will make it easier for you to achieve a high-quality result in less time.

Installation guidance

Installation of VELUX roof window with GSE/Vario in-roof system
Installation of VELUX roof window with Clearline fusion

Product range

Each BIPV supplier has different solar panel sizes, therefore in order to ensure you will order the compatible VELUX products, please contact the BIPV supplier before ordering your VELUX roof window and solar integrator flashing.

You can choose to install the roof window as a single solution with the Solar Integrator ODL or combine more roof windows together with the Solar Integrator OKL.

The VELUX solution is available in two colours (grey and black) and 7 different sizes, making it easy to fit into the most popular solar panel systems.

Installation options

  • Solar Integrator ODL for single roof window installation
  • Solar integrator OKL for two roof windows in combination installation with a frame distance between 100-160 mm

Standard colours

  • Grey aluminium (product code: 2000)
  • Black aluminium (product code: 0500, 2500, 2521M)

Size codes and measurements

External frame sizes (w x h), mm

Product code explanation

  • ODL 0500: Solar integrator in black aluminium for single roof window installation
  • ODL 2000: Solar integrator in grey aluminium for single roof window installation including underfelt collar BFX and insulation collar BDX
  • ODL 2500: Solar integrator in black aluminium for single roof window installation including underfelt collar BFX and insulation collar BDX
  • OKL 2521M: Solar integrator in black aluminium for two roof windows in combination installation with a frame distance between 100-160 mm including underfelt collar BFX and insulation collar BDX

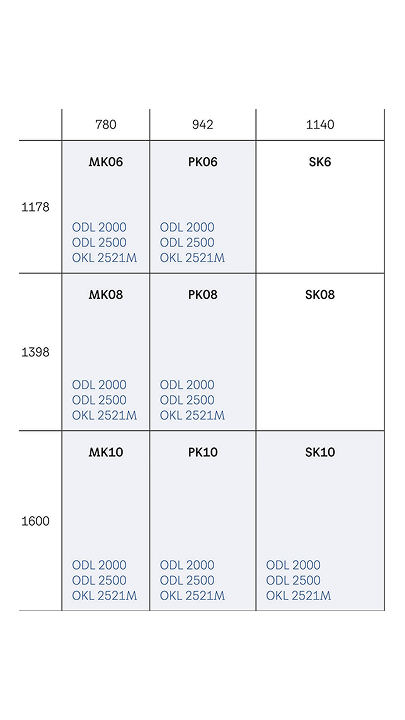

Chart showing window sizes and model numbers.

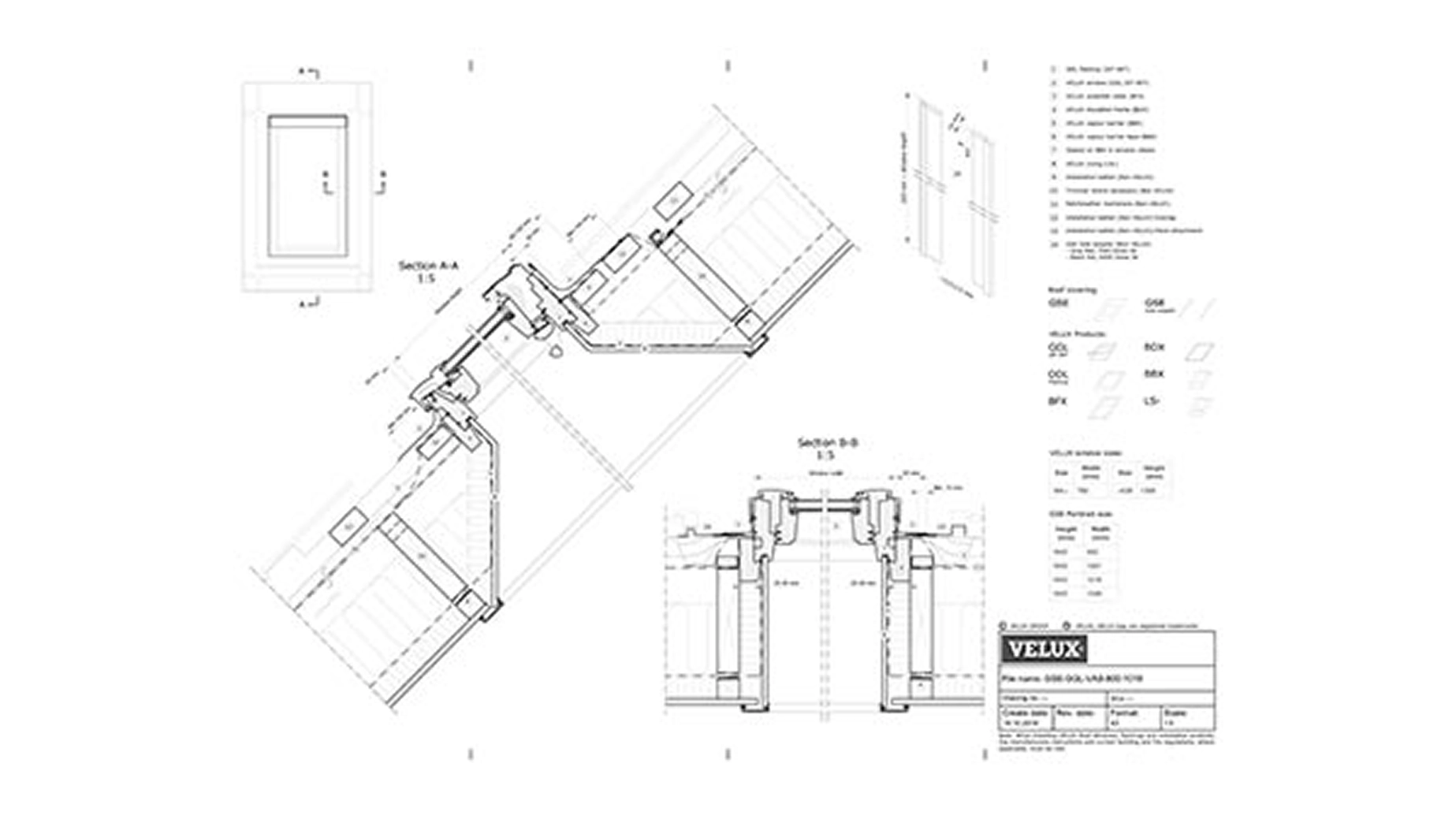

Technical drawing of VELUX roof window installation.
GSE-GGL-VAS-800-1018 ODL

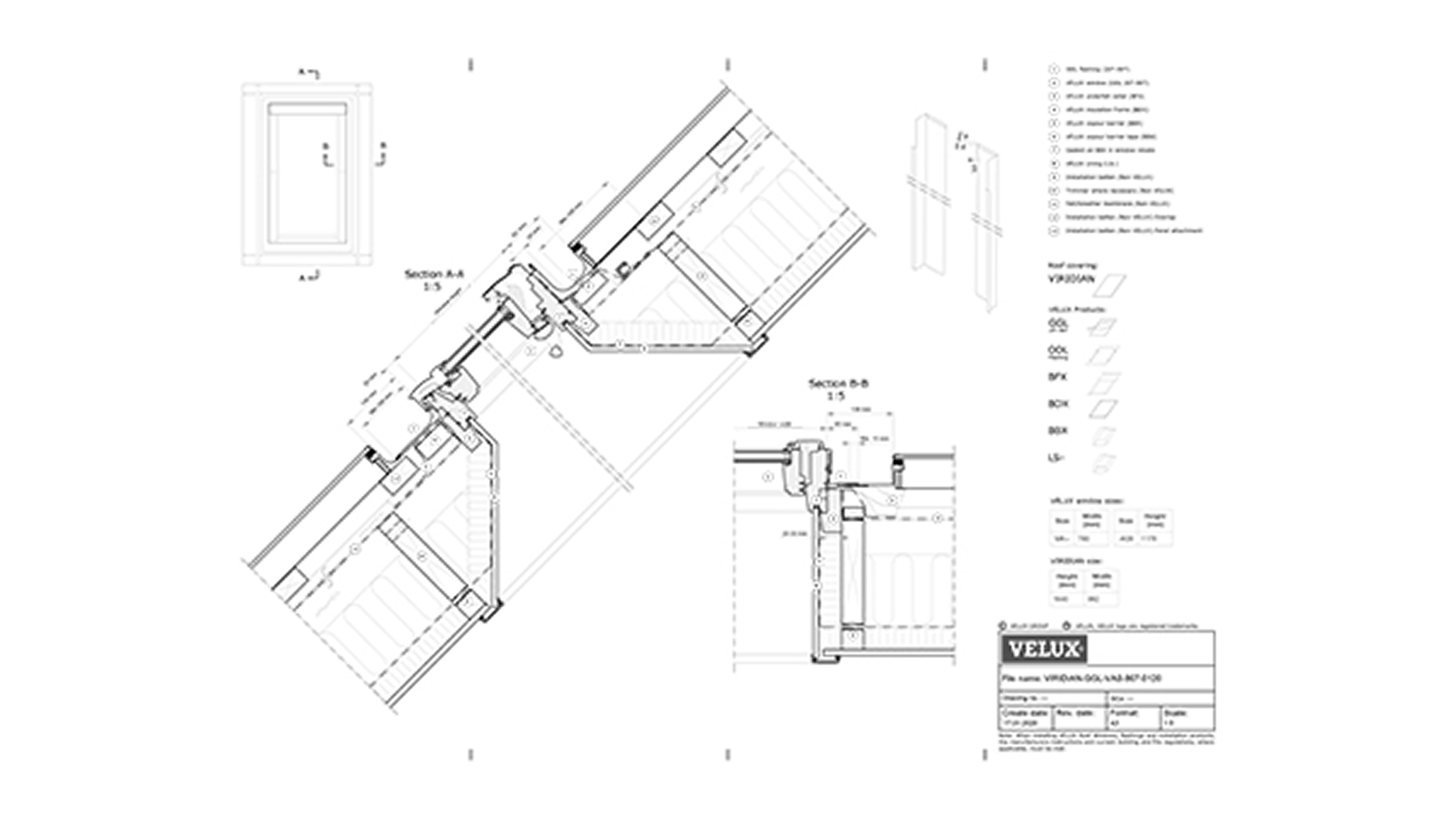

Technical drawing of VELUX roof window installation.
Viridian-GGL-VAS-807-0120 ODL

How to order

You can order the VELUX roof windows and VELUX Solar Integrators at VELUX dealers. The ordering of solar panels systems and side sections can be found on the applicable supplier web-sites.
